E4 Error in Philips Induction Cooktop
E4 Error in Philips Induction Cooktop
We have previously solved the problem of E4 in another company's INDUCTION COOKTOP, in which we have seen this problem due to voltage divider resistors being open.
Today we will see why an E4 error occurs in the induction cooktop of Philips Company.
Induction Cooktop repairing Complete Course
To date, we have not seen an E4 error in the induction cooktop of Philips. Two days ago a customer brought an induction cooktop of Philips company to be repaired.
 |
| Philips Induction Cooktop E4 Error |
How to repair E4 Error in another company's Induction cooktop.
I didn't even notice this before. I am not able to record this video because of much work. Took me some time to understand this problem. Because all the E4 Errors we have repaired to date had the problem of voltage divider resistor.
 |
| E4 Error in Philips Induction Cooktop |
But after looking closely at the circuit board, I found the internal temperature sensor missing in the Philips induction cooker which is SMD.
 |
| RTD temperature Sensor missing |
How to Repair E0 Error in Induction cooktop?
 |
| RT1 is missing |
and after seeing the other PCB of the same model induction cooker, it was confirmed that the internal temperature sensor in this induction cooker is missing.
You can see Other PCBs in Below Image.
 |

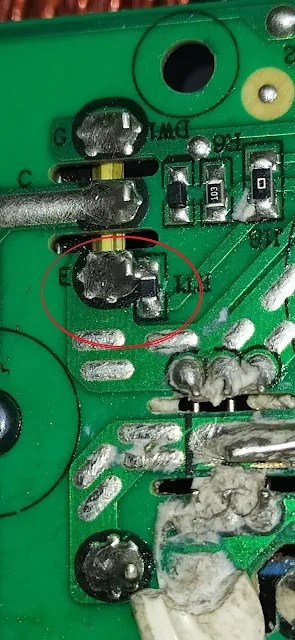

| another same PCB RT1 |
I didn't have the same sensor. that's why I put the regular temperature sensor which looks like an IN4148 diode from the old PCB.
 |
| After Replaced RT1 |
PCB After replacing Internal Temperature Sensor.
 |

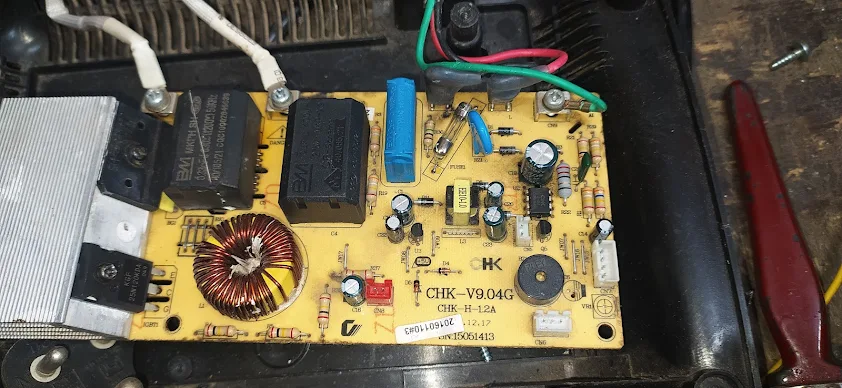

| Philips Induction Cooktop PCB This is Circuit Board we have repaired |
The induction cooker is OK after replacing the sensor.
 |
| Philips induction cooktop ok after replaced RTD |
E4 Error of Philips Induction cooktop is Solved after replacing RTD
 |
| Philips Induction cooktop Works well after replacing RT1 |
